The Uni-Mod Development Story

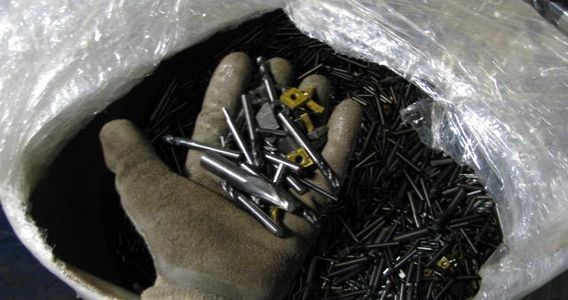

Common Tooling.
Reusing scraped carbide machine tools.

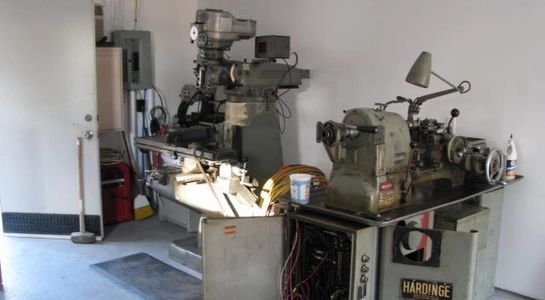

Common Machines.
We picked up a couple classics with a combined age of almost 100 years.
Common Materials.
Highly available aluminum and steel, acquired mostly from regional machine shop clean-up jobs.
Uni-Mod 7- From CAD Drawing to Full Size Model
Computer assisted design gets things going.
Newly fabricated base is ready to build off of.
3 Main frame pieces await machining.
Uni-Mod parts rough cut, soon to take shape.
Boring main pivot shaft holes.
